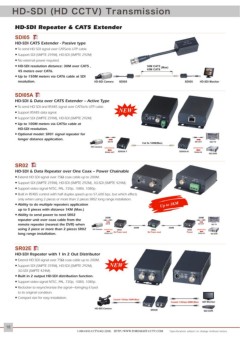

HD-SDI (HD CCTV) Transmission
HD-SDI Repeater & CAT5 Extender
SDI05
HD-SDI CAT5 Extender - Passive type
• To send HD SDI signal over CAT5e/6 UTP cable.
• Support SDI (SMPTE 259M), HD-SDI (SMPTE 292M)
• No external power required.
• HD-SDI resolution distance: 30M over CAT5 , 30M CAT5 (Max)
45M CAT6
45 meters over CAT6.
• Up to 150M meters via CAT6 cable at SDI
resolution. HD-SDi Camera SDI05 SDI05 HD-SDi Monitor
SDI05A
HD-SDI & Data over CAT5 Extender – Active Type
• To send HD SDI and RS485 signal over CAT5e/6 UTP cable.
• Support RS485 data signal. NEW
• Support SDI (SMPTE 259M), HD-SDI (SMPTE 292M)
• Up to 100M meters via CAT5e cable at
HD-SDI resolution.
• Optional model: SR01 signal repeater for
longer distance application.
SDI IN SDI OUT HD TV
Cat 5e 100M(Max)
HD Camera
RS485 OUT SDI05A-T SDI05A-R RS485 IN
HD DVR
SR02
HD-SDI & Data Repeater over One Coax – Power Chainable
• Extend HD SDI signal over 75Ω coax cable up to 200M.
• Support SDI (SMPTE 259M), HD-SDI (SMPTE 292M), 3G-SDI (SMPTE 424M).
• Support video signal NTSC, PAL, 720p, 1080i, 1080p.
• Built in RS485 control with half duplex speed up to 57,600 bps, but which effects
only when using 2 pieces or more than 2 pieces SR02 long range installation.
• Ability to do multiple repeaters application Up to 1KM
up to 5 pieces with distance 1KM (Max.)
• Ability to send power to next SR02
200M 200M
repeater unit over coax cable from the
remote repeater (nearest the DVR) when SDI IN SDI OUT HD TV
using 2 piece or more than 2 pieces SR02 HD Camera SR02 200M SR02 200M SR02
No Power need No Power need Power
long range installation. RS485 OUT RS485 IN HD DVR
SR02E
HD-SDI Repeater with 1 In 2 Out Distributor
• Extend HD SDI signal over 75Ω coax cable up to 200M.
• Support SDI (SMPTE 259M), HD-SDI (SMPTE 292M), NEW
3G-SDI (SMPTE 424M).
• Built in 2 output HD-SDI distribution function.
• Support video signal NTSC, PAL, 720p, 1080i, 1080p.
• Reclocker to resynchronize the signal—bringing it back
to its original condition.
• Compact size for easy installation.
Coaxial 1.5G bps 200M (Max)
Coaxial 1.5G bps 200M (Max) SDI Monitor
HD-SDI Camera
SR02E SDI DVR
18
1-888-GO2-CCTV(462-2288) HTTP://WWW.FORESIGHT-CCTV.COM *Specification subject to change without notice.
